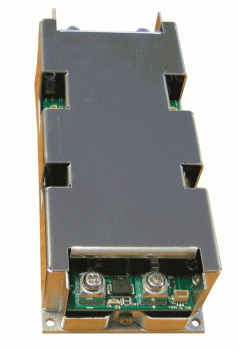

PST14B

DC-DC converter, 250W, 1 output

Description : Conduction cooled
Input type : DC-DC
Inputs : 12, 24, 48, 72, 110 Vdc IN
Outputs : 1
Output voltage : From 3,3V to 48Vdc
Power : 250W
Particularity : Very low profile
Approvals : Built to meet EN55022, MIL-STD461E CE102, MIL STD-704, MIL-STD 810 see options and MIL-STD1275 (12 or 24Vdc only)
Application : Parallel or series operation up to several KWs
Dimensions : 140 x 61 x 35mm
Markets : Industrie, Defence, Avionic, New Energies
PST14ABC Rev. 04 datasheet PST14B 3D model Download step
