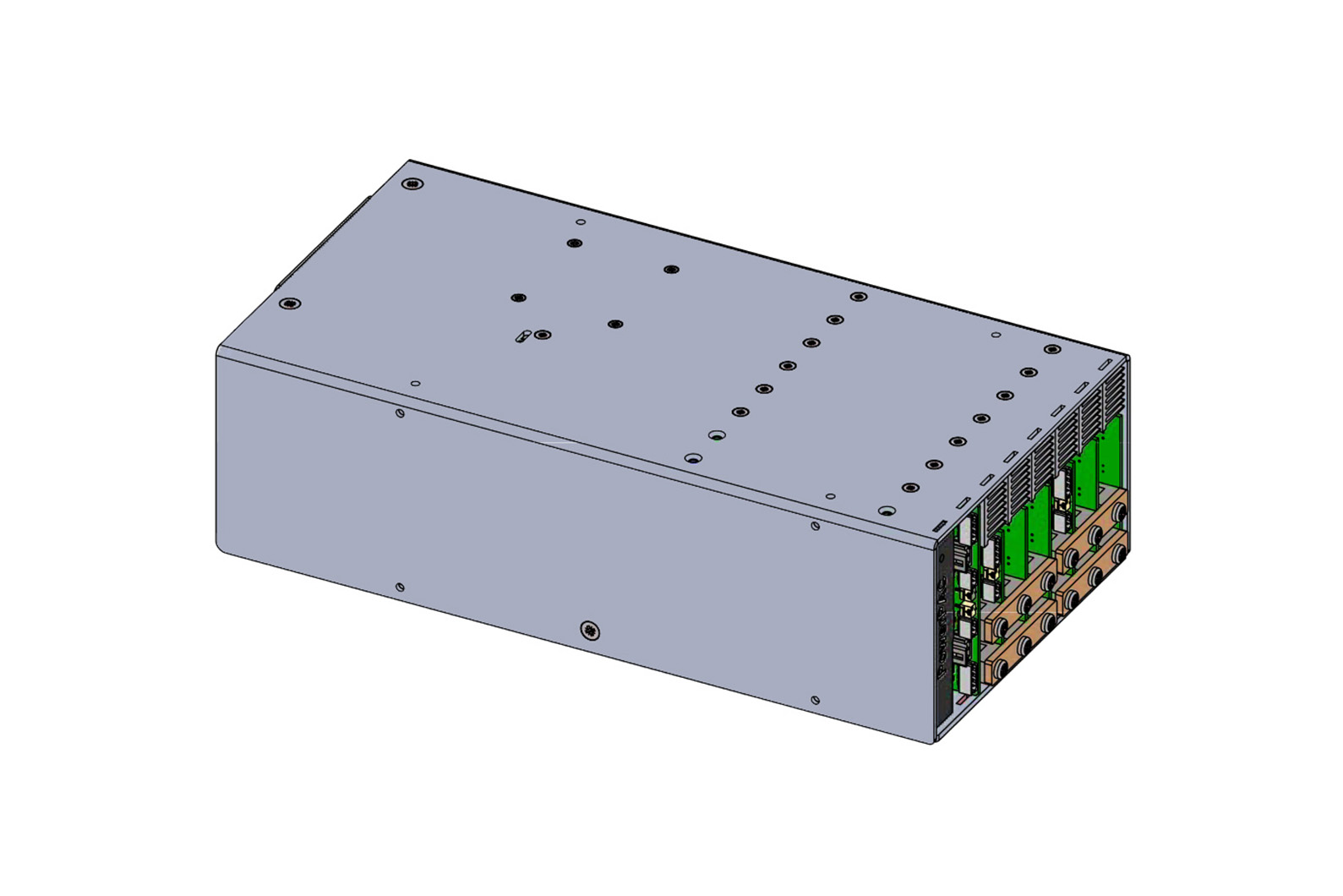

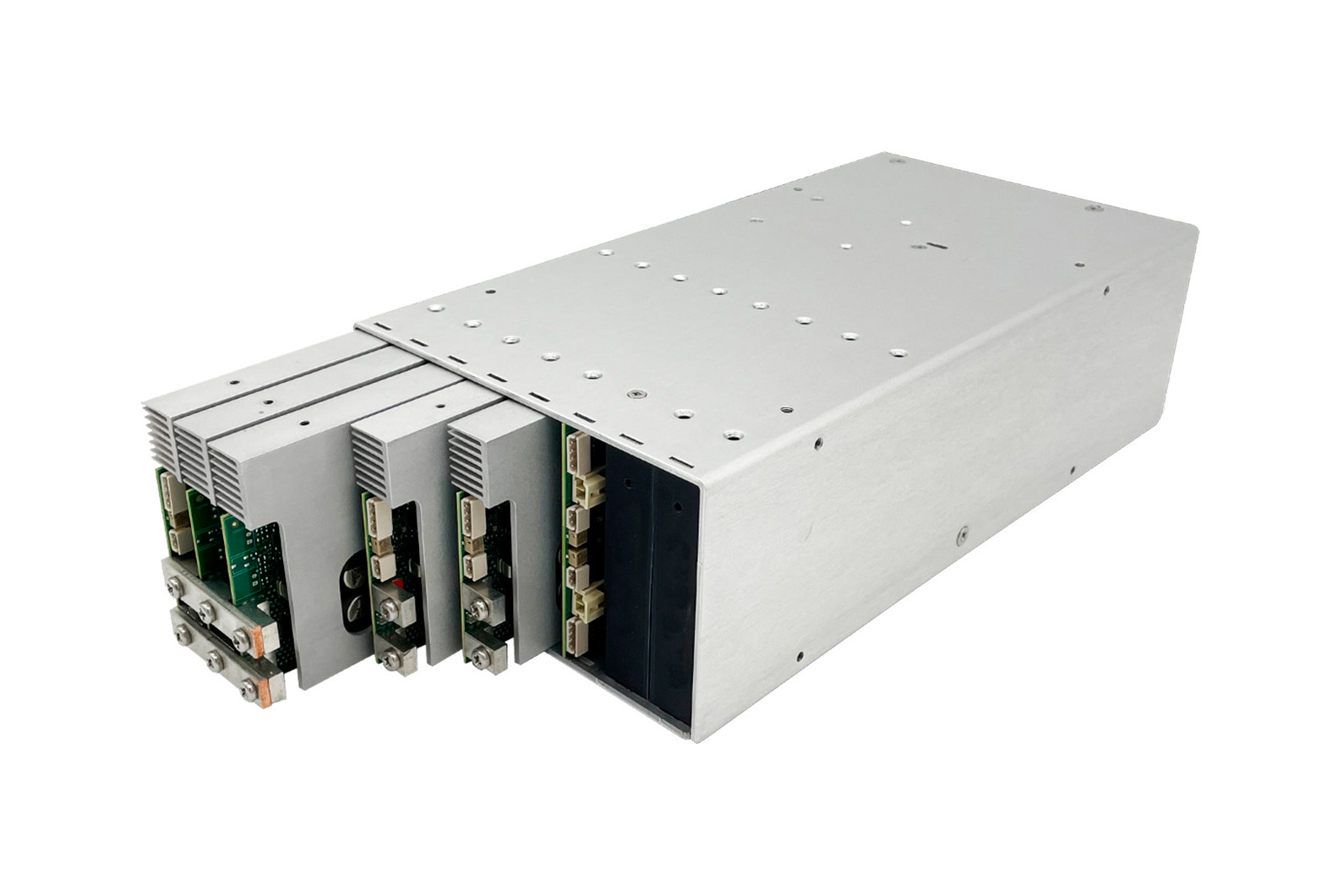

AC-DC power supply, up to 4000W, 1-16 outputs

Description: Configurable AC-DC power supply
Type: AC-DC
Input: 85-265Vac, 47-63Hz or 85-135Vac, 360-440Hz
(consult for DC input)
Output: 1 to 16 outputs
Output voltages: From 3V3 to 48Vdc
Power: 4000W max.
Particularity: modular, high density
Standards: Built to meet EN61000-3-2, EN55022B or MIL-STD461E CE102, MIL-STD810E
Application: Ideal for numerous voltage and high power density
Dimensions: 86 x 153.5 x 305mm
Markets: Industry, Defence
powerPAC4K - DATASHEET Download step
