CPCI AC

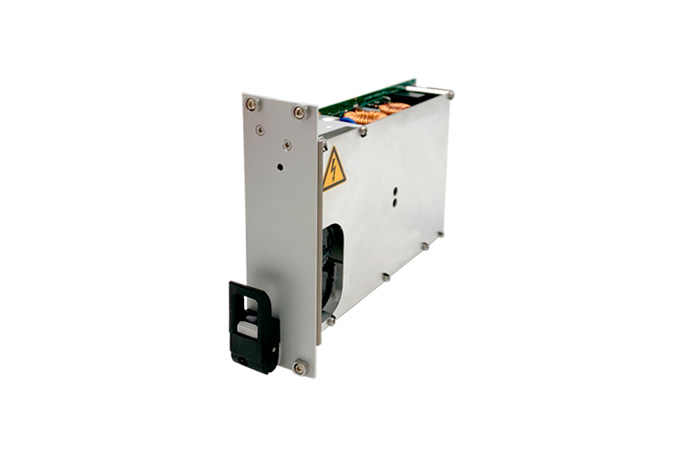

Power supply, compact PCI 300W, 4 outputs

Description : Compact PCI 300W
Input type : AC-DC
Inputs : 85-265 Vac or 100-350Vdc IN
Outputs : 4
Output voltage : 3V3/50A, 5V/40A, 12V/1A, -12V/1A or 3V3/50A, 5V/40A, 12V/5A, -12V/1A
Power : 300W
Particularity : Fit the PICMG 2.11 standard
Approvals : Built to meet EN55022A, MILSTD461E, EN 61000-4-5, MIL-STD 810F
Application : For severe environment

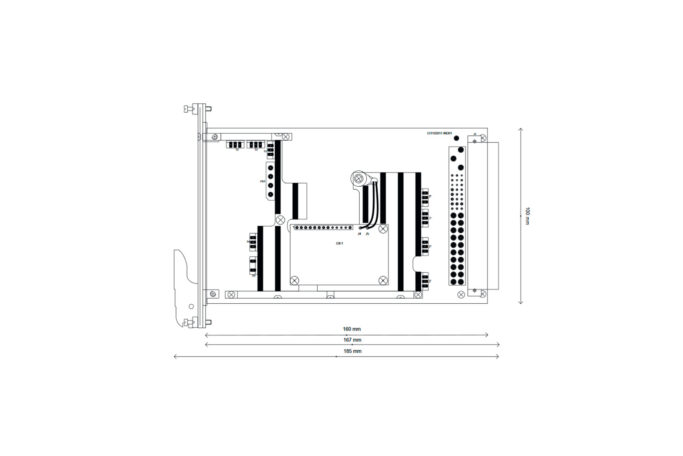

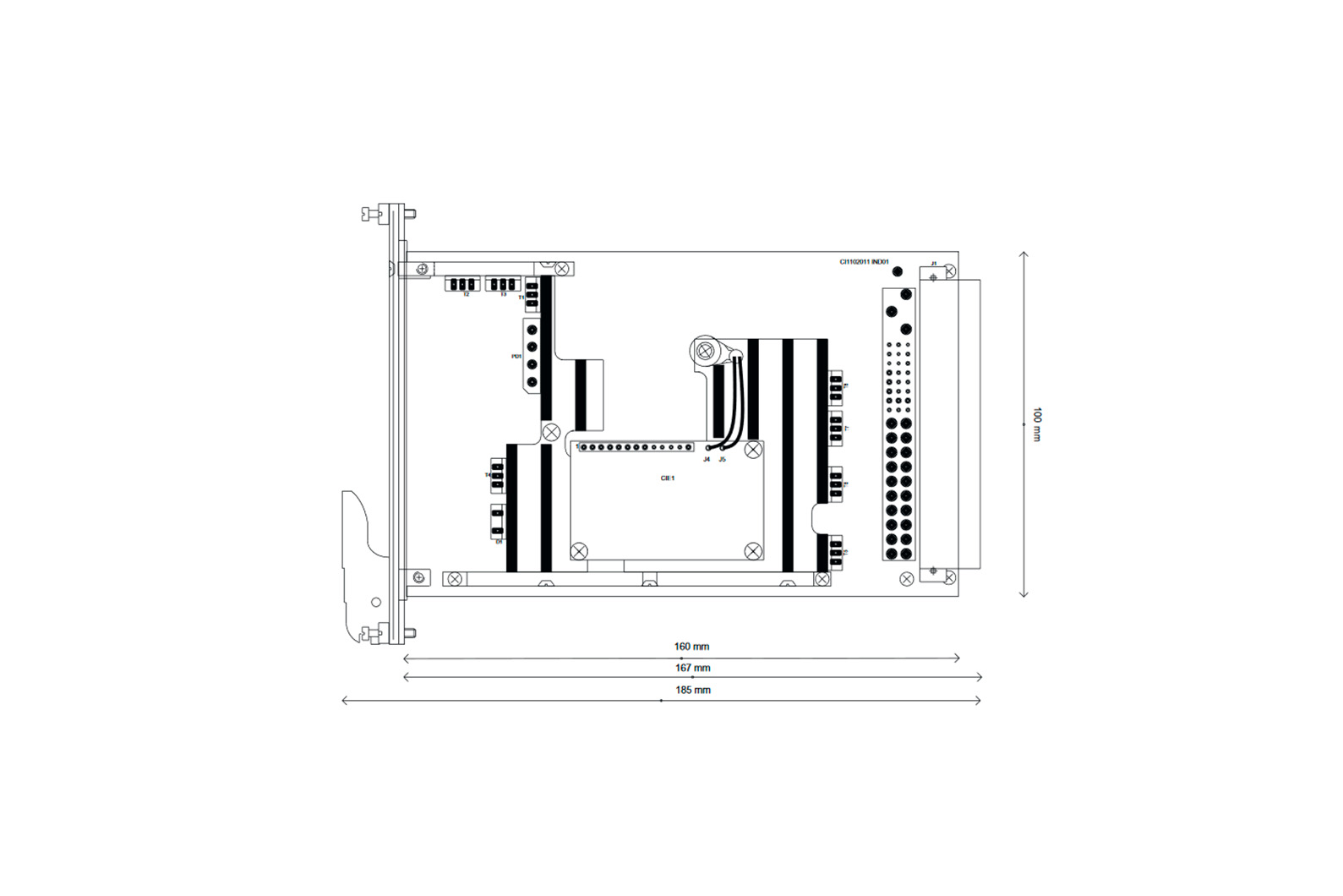

Dimensions : 3U x 8TE x 160mm
Markets : Industry, Defence, Avionic
CPCI AC Datasheet Download step
