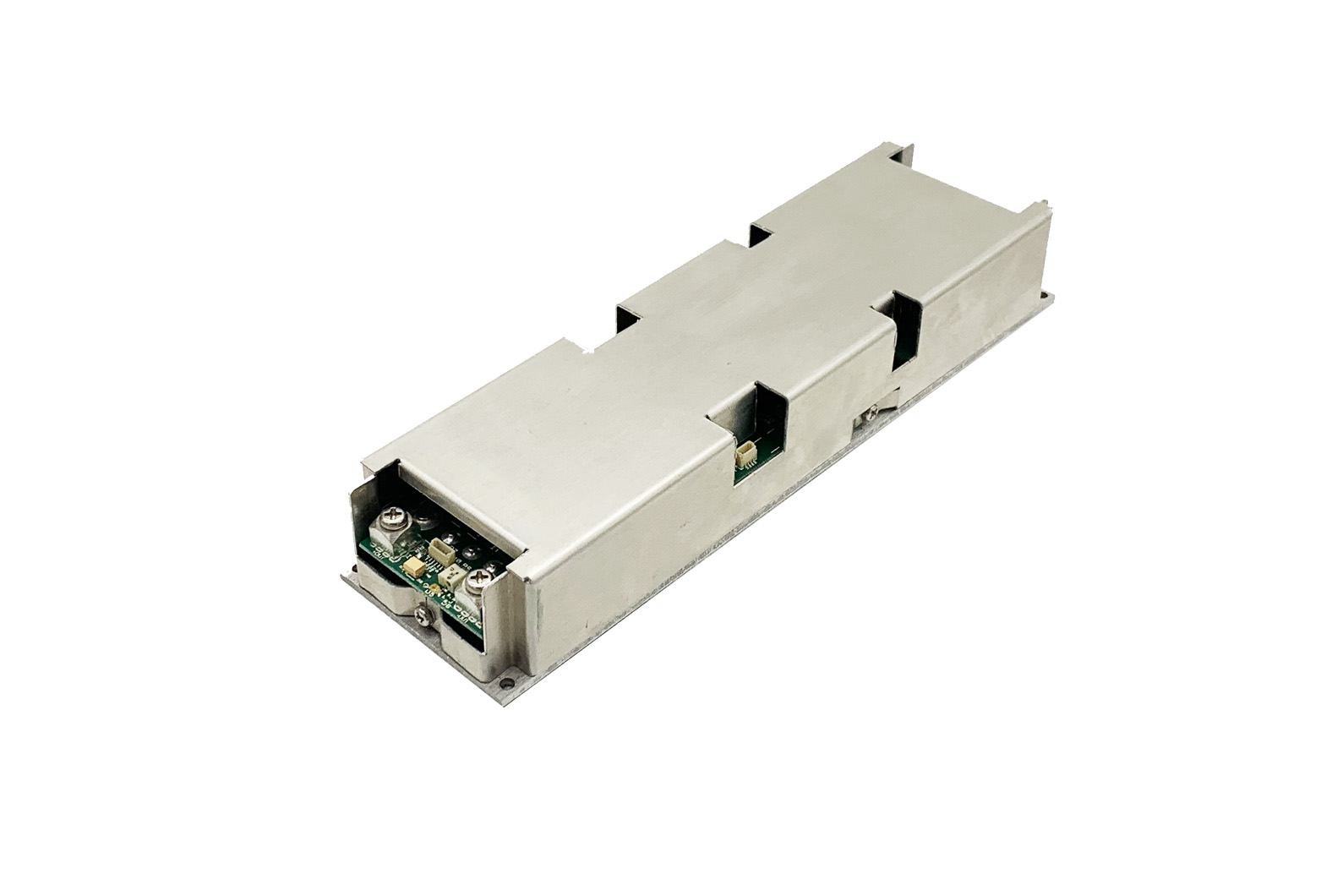

PST14A

DC-DC converter, 500W, 1 output

Description: Conduction cooled
Input type: DC-DC
Inputs: 12, 24, 48, 72, 110 Vdc IN
Outputs: 1
Output voltage: From 3,3V to 48Vdc
Power: 500W
Particularity: Very low profile
Approvals: Built to meet EN55022, MIL-STD461E CE102, MIL STD-704, MIL-STD 810 see options and MIL-STD1275 (12 or 24Vdc only)
Application: Parallel or series operation up to several KWs
Dimensions: 225 x 61 x 35mm
Markets: Industrie, Defence, Avionic, New Energies
PST14ABC rev.04 Datasheet PST14A 3D model Download step
